Label printing on POS

Label printing on POS

In this article, we will show you how to print labels using your POS for orders, such as stickers for coffee cups or labels for delivery orders.

This article is applicable only for Quick Service Restaurants (QSR) businesses.

1) Supported Printer:
Currently, we support only one label printer with our Android POS: the Epson TM-L90II LFC Thermal Label Printer.
Zebra or Dymo printers cannot be connected to Android POS.

2) Connecting Your Printer:

  • Connect your printer using a USB-B cable to your POS.
  • Go to Settings -> Devices -> Printers -> Tap on the refresh button. The Epson printer should appear on the list.
  • If you want to connect your label printer to the POS via a local network, please follow this article: How to connect network printer

3) Configuring Your Printer:

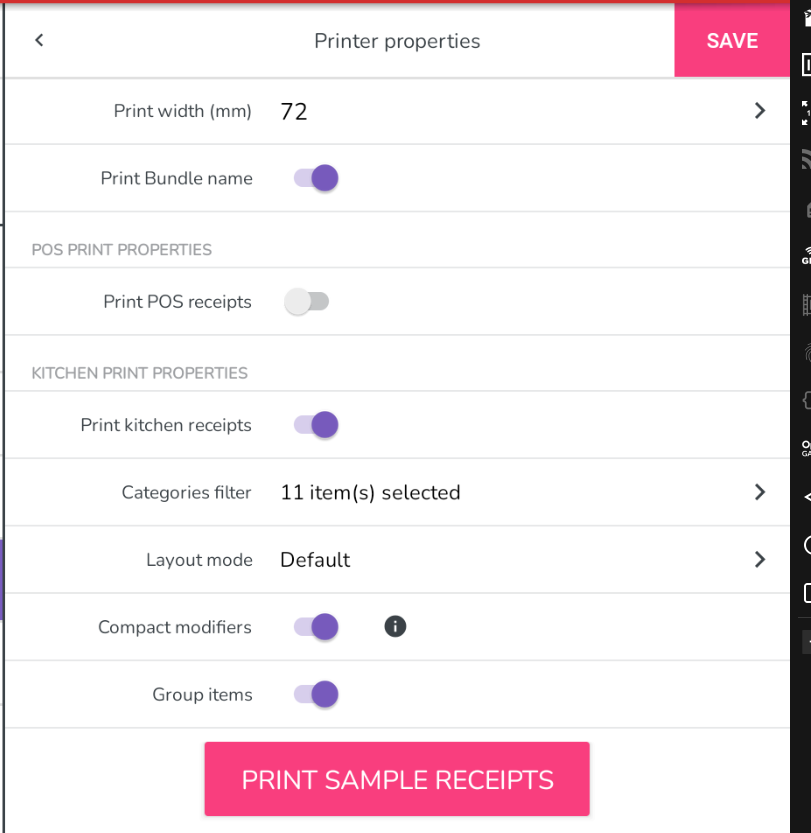

  • Tap on the Epson printer and configure your settings.
    • Disable the "Print POS receipts" toggle if you do not want to print customer receipts on this printer.
    • Enable the "Print kitchen receipts" toggle.



    • Define how labels should be printed on your label printer:

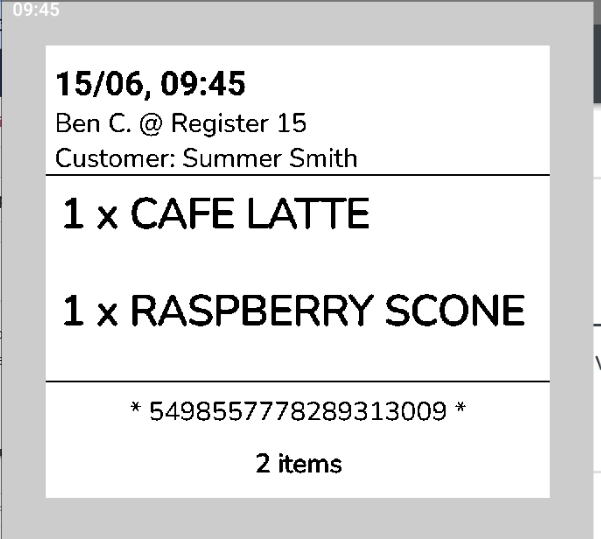

      • Default view. All items will be printed on single label:

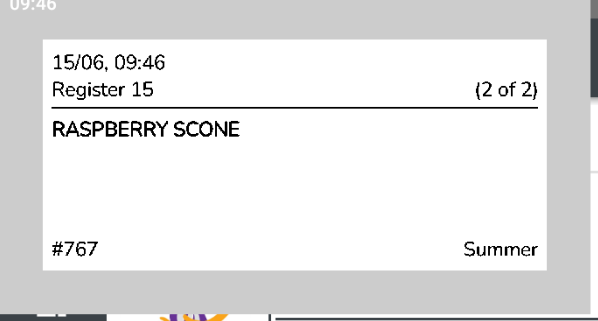

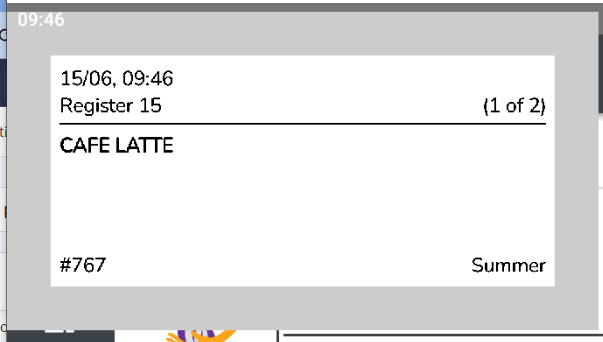

      • Single item. For each item idividual label will be printed:

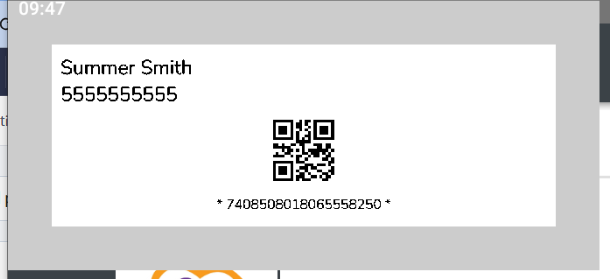

      • Order barcode. QR Code or bacode of the order ID will be printed on the label:
