PAX S300 (Credit/Debit Machine) Factory Reset (Reset to default)

Steps to Restart and Configure Your PAX S300

1. Restart the PAX S300

      - Unplug the power cord, then plug it back in.

      - As soon as the device powers up, press and hold the “Menu” button quickly during startup.

      - Select #4 – Remote Download



2. Access Remote Download

      - Use the keypad to select Option #4 – Remote Download.

      - Then select Option #1 – New Download.

3. Enter Connection Settings

      - Choose Option #1 – TCP.

      - Enter the IP Address: 216.238.144.195

To type a dot (“.”), press the 1 key, then press the Alpha button 5 times until the number changes to a dot.



      - Press the Green Enter key.

4. Enter Port Number

      - Enter the Port Number: 8582

      - Press the Green Enter key.

      - Enter in Port Number 8582

      - Hit the Green Enter Key

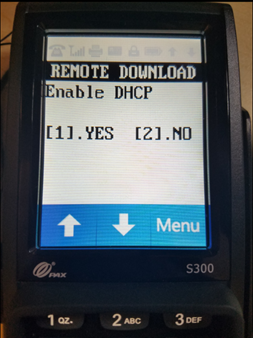

5. Enable DHCP

      - Select DHCP and press Enter.

6. Enter Terminal ID

      - Use one of these IDs based on your setup:

            - 30030098

            - 30030097



     - Press the Green Enter key.

Hit the Green Enter Key

7. Final Steps

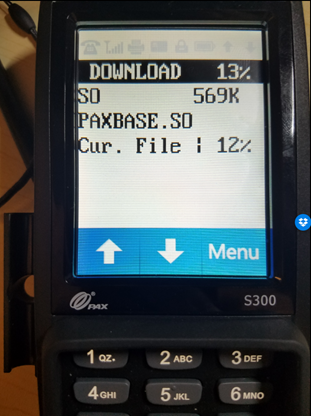

      - The device will start downloading settings.

      - Reboot the PAX S300:

If it doesn’t restart automatically, unplug the power cord and plug it back in.

Once the device finishes downloading, you’ll see the regular home screen with PAX, Google Pay, or Apple Pay displayed.

The PAX S300 should restart automatically and download few more settings before it comes to a regular screen with PAX (Google Pay/Apple Pay) displayed on the screen.

If the device is not restarting automatically please restart it manually. In order to restart it manually please unplug the power cord and plug it back again.

This is the complete Picture of the PAX S300 and how the cables are connected to better understand.
