Print Barcode label

Print Barcode label

This page will let you download a list of product barcode labels for printing.

  • Catalog >> Inventory management >> Print barcode label

SKU

  1. You can search product by SKU
  2. Change the QTY of barcode you want to print
  3. Press 'Load Barcode' which you should see once it's been loaded
  4. Press 'Get Barcode'


Advanced Options

  1. Press 'Advanced options'
  2. Search by category, product name, vendor or upload by CSV file
  3. Click 'Load Barcode' to generate




If you would like to print a label from the product page (this does not print labels based on the QOH)

  1. Login to Franpos App as (Administrator) Backoffice

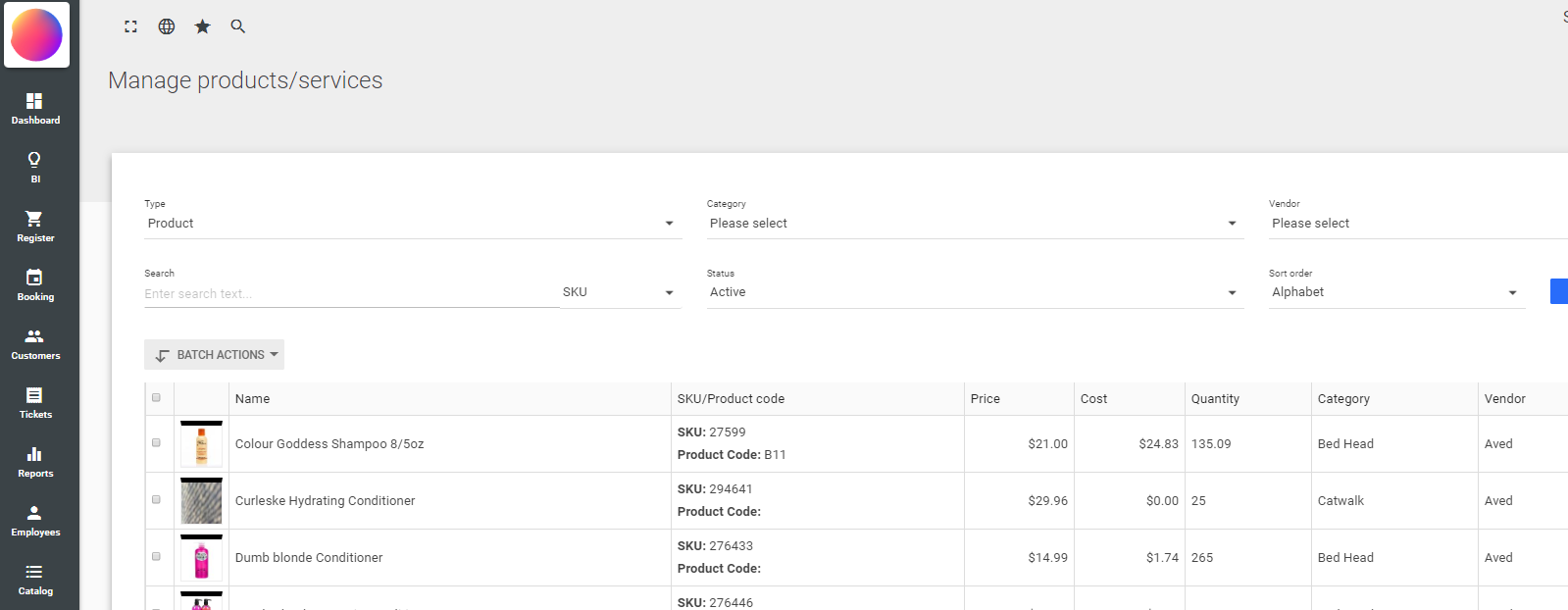

  2. Go to Catalog >> Product & Service >> Select any Product on the list

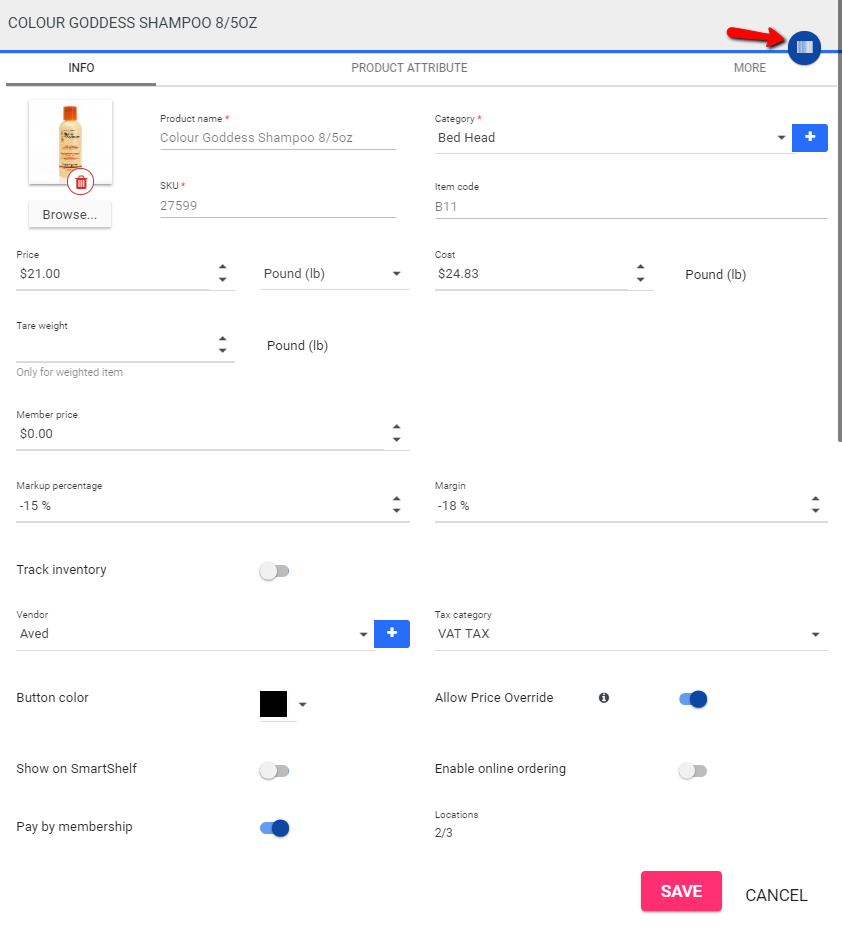

3. Next, another Box will appear that will show the details of the product you have selected.          Click on the right-hand side of your screen, and you will see a barcode icon.

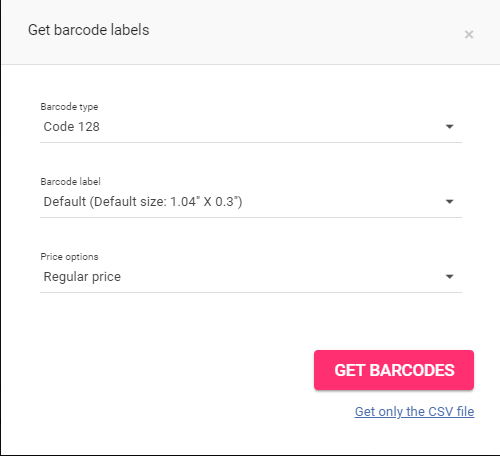

4. A Print Barcode Label Box will appear. You can choose how you want barcodes to be printed by size and amount. Once you are done, click on "Get Barcode".

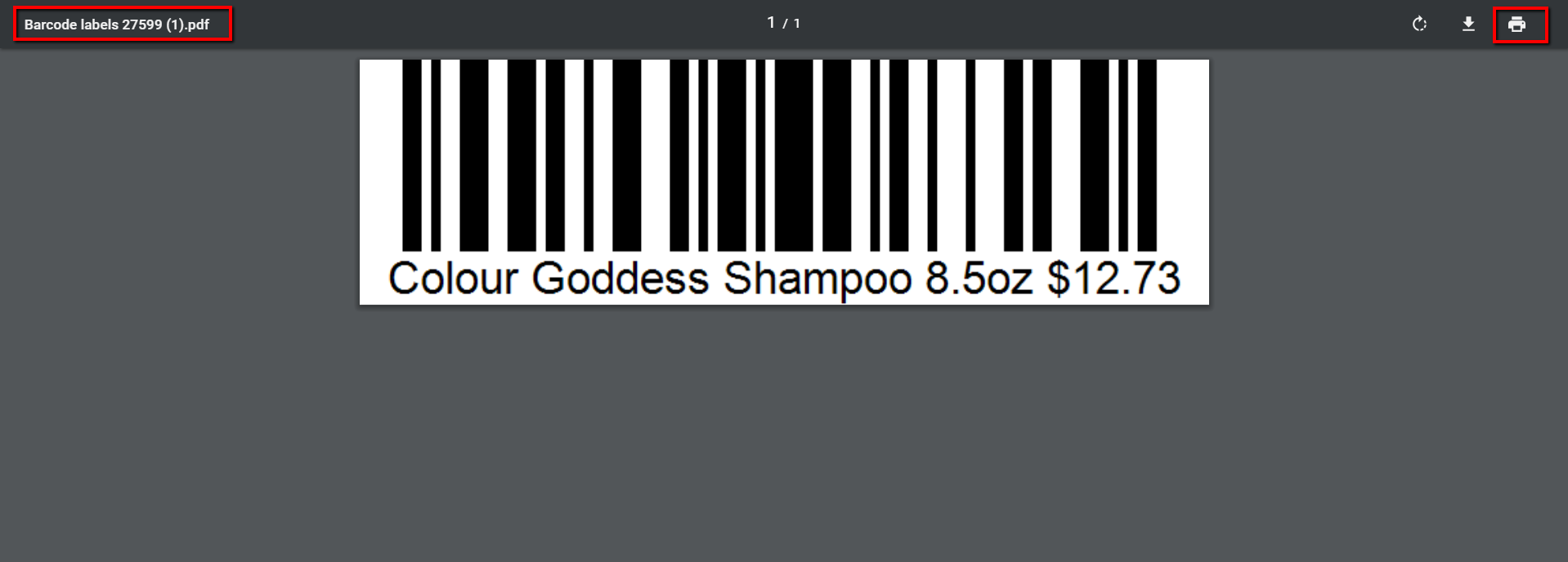

5. A PDF file will be generated and downloaded. This barcode will open and you can proceed to print by clicking the Print icon.




Note: You can’t Print Barcodes from the franpos Register





Video Tutorial
