Printing Label - DYMO

Printing Label - DYMO

**Prerequisite – DYMO connect software installed on PC**

**DYMO Connect Web Service must be running**

- Proceed to - https://my.franpos.com/PrintingSettings

- Click the PLUS symbol at top right

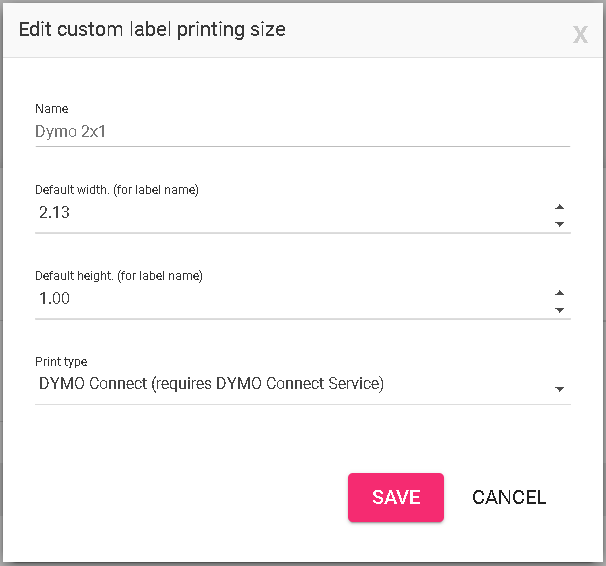

- Select “Create Custom Label Printing Size”

- Enter the following and select SAVE –


- Select “Dymo 2x1” from the label type

- Set as default label for printing

- Upload SamplePrint.dymo (attached) into the label template

      optional - use 1x1 label (attached)
      optional - use a QR code versus a barcode
​

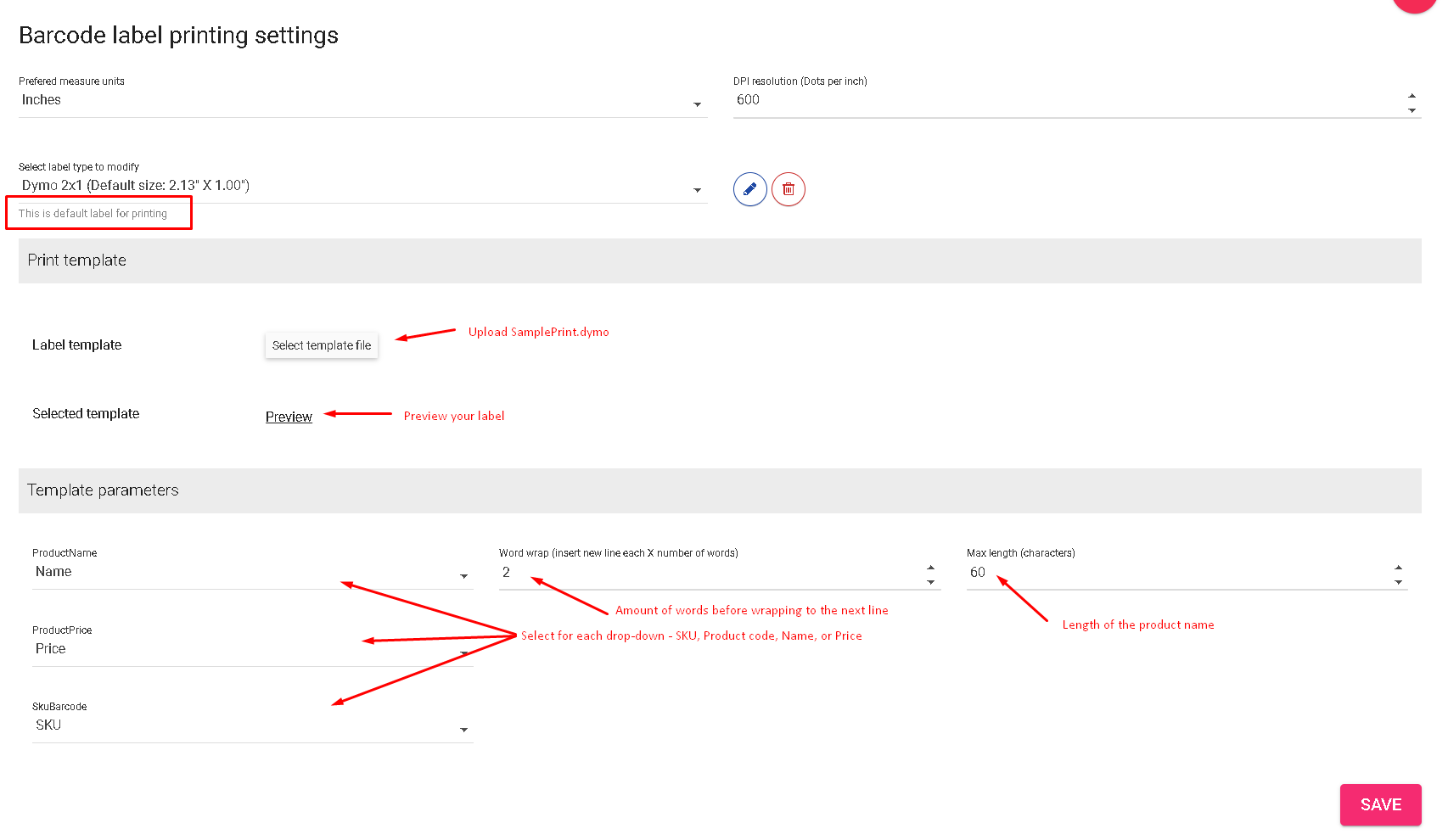

- Adjust ProductName, ProductPrice, and SkuBarcode with the following options

    - SKU

    - Product code

    - Name

    - Price

- Enter in number of words before wrapping to the next line

- Define the maximum character length per line

- Preview the template


- Save


- Print a label to test configuration - DYMO Connect Web Service must be running
