In the training, you will learn how to set up your Zebra ZD410 Printer in franpos.

Note: This step is only necessary if the printer was not yet installed. Please download and install the Zebra Utility to install the Printer Driver. https://www.dropbox.com/s/fqooob8kiix1fdx/zsu-1191245.exe?dl=0



Zebra Browser Installation (Mac)

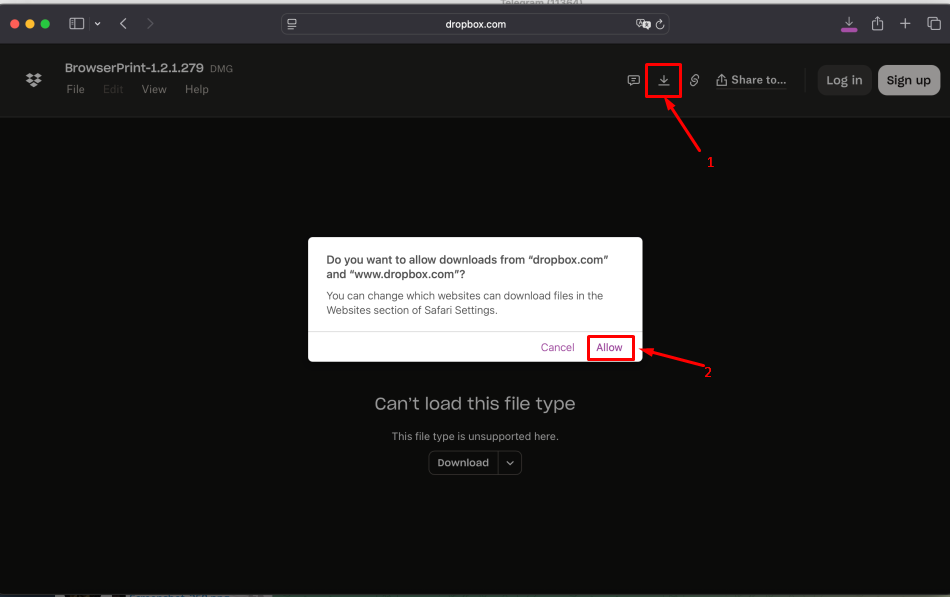

  1. Please download https://www.dropbox.com/scl/fi/6uil3ehseekp11z6680cp/zebra-browser-print-mac-v132489.dmg?rlkey=a7yy5j2ns9nmg7581ysnoijkk&st=8js592yz&dl=0

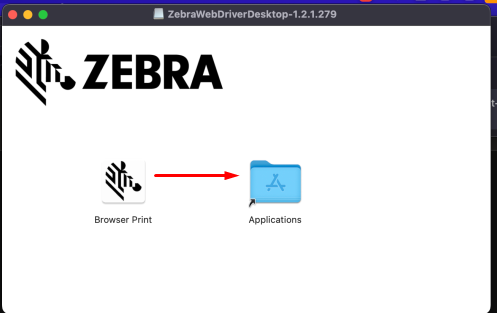

  2. Drag the dmg file into Applications to install
  3. After installing and opening the Browser print software, a pop-up about communicating with a web browser will appear. Click “OK”.

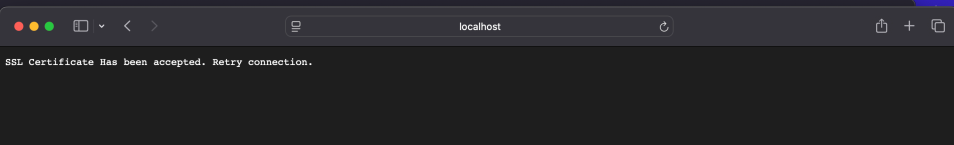

  4. In the web browser, it will display that the SSL Certificate has been accepted.https://localhost:9101/ssl_support
  5. A pop-up will appear requesting access to any connected Zebra devices. Select Yes.

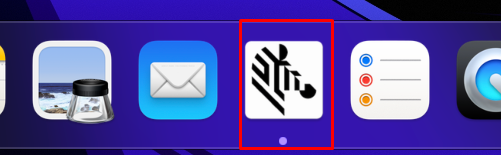

  6. A Zebra logo icon will also appear in your top menu bar, that indicates that Zebra Browser Print is running



Zebra Browser Installation (Windows)

Please download https://www.dropbox.com/s/z34baoy77umynq4/zebra-browser-print-setup-1.2.0.3.exe?dl=0




1. Run the installer executable “ZebraBrowserPrintSetup-1.2.X.exe”.
2. Select where you would like to save the Browser Print files and click “Next”.

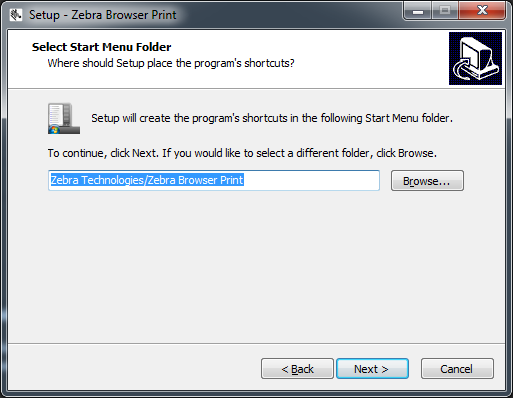

3. Select where you would like to run the program from and click “Next”.



4. Decide if you want to have a desktop icon for Browser Print and click “Next”.



5. Click “Install”.



6. Check the box to launch Zebra Browser Print and click “Finish”. If you do not check the box,
Zebra Browser Print will be launched the next time you restart your computer.



7. Note: The Windows installer adds a shortcut to the “startup” menu automatically. This feature will ensure that Browser Print runs when the computer is restarted. You can remove this feature by right-clicking on the shortcut in the startup menu. Browser Print will only work when started
manually without the entry in “startup”.

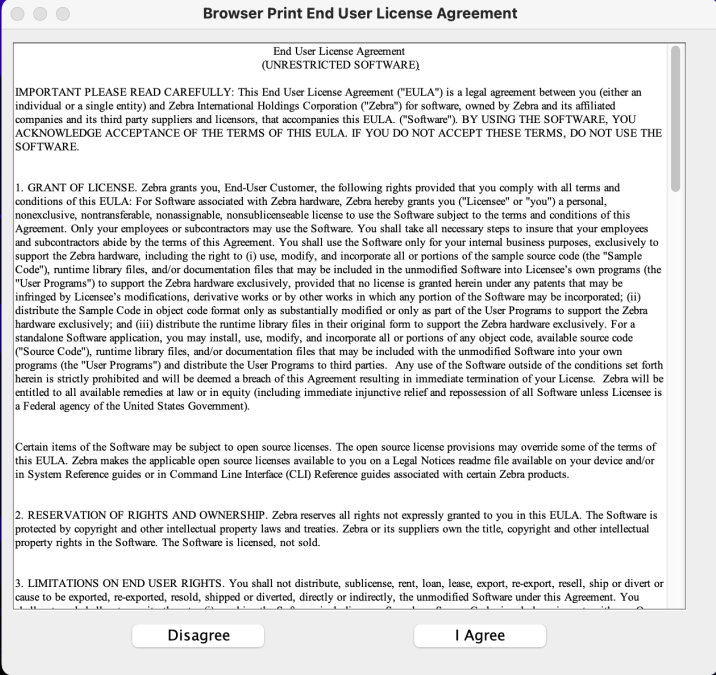

8. When the program runs for the first time, the End User License Agreement will pop-up. Select “I
Agree”.



9. A pop-up about communicating with a web browser will appear. Click “OK”.

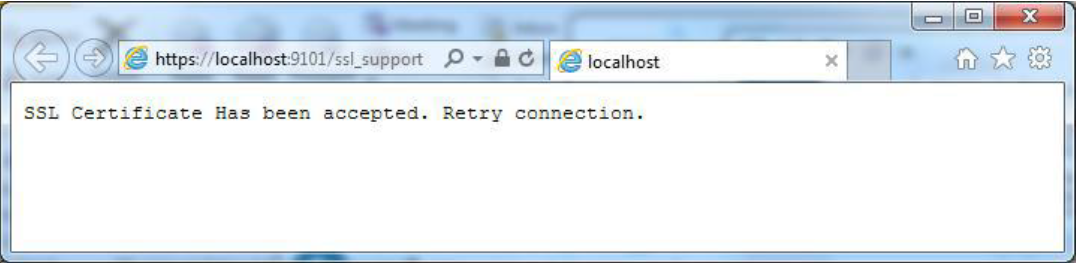

10. In a web browser, it displays that the SSL Certificate has been accepted.https://localhost:9101/ssl_support

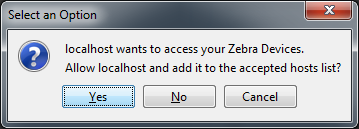

11. A pop-up will appear requesting access to any connected Zebra devices. Select Yes.



12. A Zebra logo icon will also appear in your system tray this indicates that Zebra Browser Print is
running.



______________________________________________________________________________



Running BrowserPrint

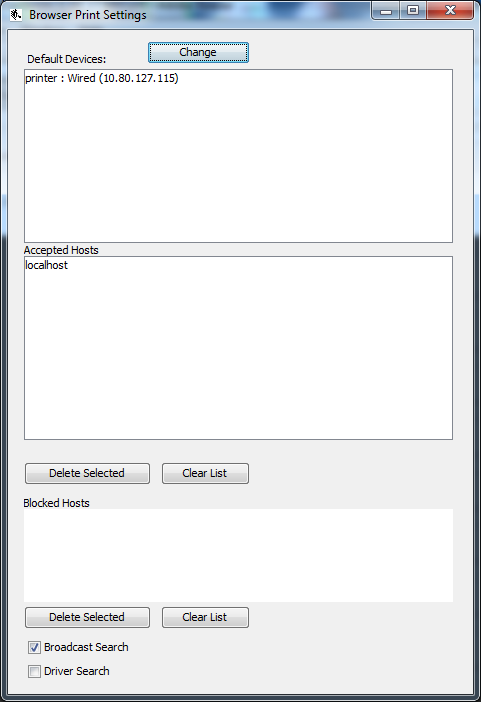

1. Right-click (WIN) or Click (OS X) on the Zebra log icon and select Settings. Browser Print’s

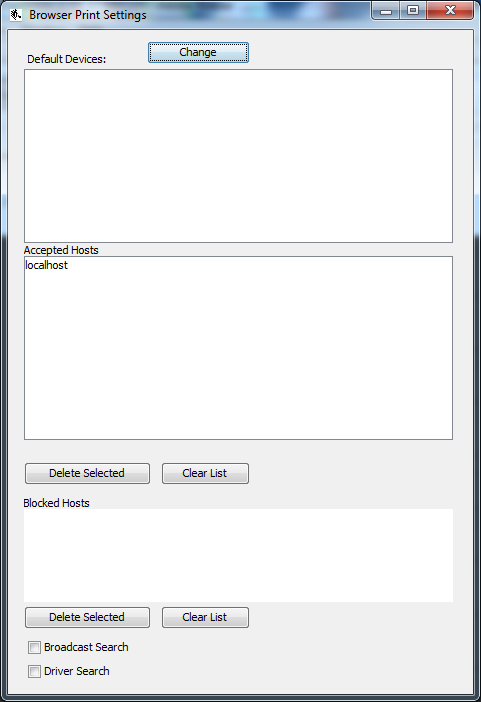

settings will open.


a. Default Devices: Lists the default device set for this user. This is different than the default
printer set by the operating system. This can be changed once set via the “Change”
button or via script.

b. Accepted Hosts: Lists web addresses that the user has allowed access to their devices.
These can be removed using this screen.

c. Blocked Hosts: Lists web addresses that the user has blocked access to their devices.
These can be removed using this screen.

d. Broadcast Search: Selection box allows Zebra Browser Print to find and print on a network
connected Zebra Printers.

e. Driver Search: Not supported in this release.

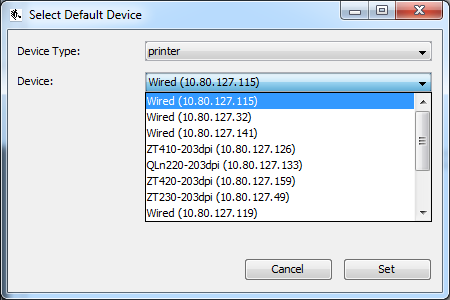

3. To set or change the default printer, click the “Change” button. A pop-up will appear with a
dropdown of all discoverable devices (finding network connected Zebra printers may take a few
moments).


4. Select the device you would like to print to by default and click “Set”.

______________________________________________________________________________




Setting up the Backoffice for printing with a Zebra printer

1. Please go to on the Label Printing Page or access Settings > Label Printing in your back office.

2. Click the plus icon and click Create Custom Label Printing Size

3. In the pop-up that follows, fill out the name, width, height and select the print type to be Zebra direct and press save










4. Please copy/paste on of the following code in the Print template field:

Updated:


^FX Starting tag is always XA
^XA

^FX Print Orientation (Normal or Inverted)
^POI

^FX Field Typeset (Location X, Location Y), Position are relative to alignment
^FT5,50

^FX Scalable/Bitmapped Font (Name, Orientation, Height, Width)
^A0N,45,45

^FX Field Block (Width, Max Lines, Extra Space Between Lines, Justification, Indent)
^FB240,1,0,R

^FX Field Data (Data)
^FD{PRICE}

^FX Field Separator
^FS

^FX Field Typeset (Location X, Location Y), Position are relative to alignment
^FT5,75

^FX Scalable/Bitmapped Font (Name, Orientation, Height, Width)
^A0N,15,15

^FX Field Block (Width, Max Lines, Extra Space Between Lines, Justification, Indent)
^FB230,1,0,R

^FX Field Data (Data)
^FD{CODE}

^FX Field Separator
^FS

^FX Field Typeset (Location X, Location Y), Position are relative to alignment
^FT5,115

^FX Scalable/Bitmapped Font (Name, Orientation, Height, Width)
^A0N,15,15

^FX Field Block (Width, Max Lines, Extra Space Between Lines, Justification, Indent)
^FB230,2,0,C

^FX Field Data (Data)
^FD{NAME}

^FX Field Separator
^FS

^FX Bar Code Field Default (Module Width, Wide bar/Narrow bar, Height)
^BY1,3,30

^FX Field Typeset (Location X, Location Y), Position are relative to alignment
^FT{BARCODE_POSITION_X},148

^FX Code 128 Bar Code (Orientation, Height, Print Interpretation Line, Print Interpretation Line Above Code)
^BCN,,N,N

^FX Field Data (Data)
^FD{SKU}

^FX Field Separator
^FS

^FX Field Typeset (Location X, Location Y), Position are relative to alignment
^FT5,170

^FX Scalable/Bitmapped Font (Name, Orientation, Height, Width)
^A0N,20,20

^FX Field Block (Width, Max Lines, Extra Space Between Lines, Justification, Indent)
^FB230,1,0,C

^FX Field Data (Data)
^FD{SKU}

^FX Field Separator
^FS

^FX Print Quantity (Total, Pause, Replicates, Pause Override)
^PQ{QUANTITY},0,1,Y

^FX Ending tag is always XZ
^XZ

Updated large:

^FX Starting tag is always XA
^XA

^FX Print Orientation (Normal or Inverted)
^POI

^FX Field Typeset (Location X, Location Y), Position are relative to alignment
^FT105,50

^FX Scalable/Bitmapped Font (Name, Orientation, Height, Width)
^A0N,45,45

^FX Field Block (Width, Max Lines, Extra Space Between Lines, Justification, Indent)
^FB240,1,0,R

^FX Field Data (Data)
^FD{PRICE}

^FX Field Separator
^FS

^FX Field Typeset (Location X, Location Y), Position are relative to alignment
^FT105,75

^FX Scalable/Bitmapped Font (Name, Orientation, Height, Width)
^A0N,15,15

^FX Field Block (Width, Max Lines, Extra Space Between Lines, Justification, Indent)
^FB230,1,0,R

^FX Field Data (Data)
^FD{CODE}

^FX Field Separator
^FS

^FX Field Typeset (Location X, Location Y), Position are relative to alignment
^FT105,115

^FX Scalable/Bitmapped Font (Name, Orientation, Height, Width)
^A0N,17,17

^FX Field Block (Width, Max Lines, Extra Space Between Lines, Justification, Indent)
^FB280,2,0,C

^FX Field Data (Data)
^FD{NAME}

^FX Field Separator
^FS

^FX Bar Code Field Default (Module Width, Wide bar/Narrow bar, Height)
^BY1,3,30

      ^FX Field Typeset (Location X, Location Y), Position are relative to alignment
      ^FT{BARCODE_POSITION_X},148

      ^FX Code 128 Bar Code (Orientation, Height, Print Interpretation Line, Print Interpretation Line Above Code)
      ^BCN,,N,N

      ^FX Field Data (Data)
      ^FD{SKU}

^FX Field Separator
^FS
^FX Field Typeset (Location X, Location Y), Position are relative to alignment
^FT105,160

^FX Scalable/Bitmapped Font (Name, Orientation, Height, Width)
^A0N,15,15

^FX Field Block (Width, Max Lines, Extra Space Between Lines, Justification, Indent)
^FB230,1,0,C

^FX Field Data (Data)
^FD{SKU}

^FX Field Separator
^FS

^FX Print Quantity (Total, Pause, Replicates, Pause Override)
^PQ{QUANTITY},0,1,Y

^FX Ending tag is always XZ
^XZ

1x1


^FX Starting tag is always XA
^XA

^FX Print Orientation (Normal or Inverted)
^POI

^FX Field Typeset (Location X, Location Y), Position are relative to alignment
^FT50,50

^FX Scalable/Bitmapped Font (Name, Orientation, Height, Width)
^A0N,45,45

^FX Field Block (Width, Max Lines, Extra Space Between Lines, Justification, Indent)
^FB240,1,0,R

^FX Field Data (Data)
^FD{PRICE}

^FX Field Separator
^FS

^FX Field Typeset (Location X, Location Y), Position are relative to alignment
^FT20,75

^FX Scalable/Bitmapped Font (Name, Orientation, Height, Width)
^A0N,20,20

^FX Field Block (Width, Max Lines, Extra Space Between Lines, Justification, Indent)
^FB230,1,0,R

^FX Field Data (Data)
^FD{CODE}

^FX Field Separator
^FS

^FX Field Typeset (Location X, Location Y), Position are relative to alignment
^FT105,118

^FX Scalable/Bitmapped Font (Name, Orientation, Height, Width)
^A0N,18,18

^FX Field Block (Width, Max Lines, Extra Space Between Lines, Justification, Indent)
^FB230,2,0,C

^FX Field Data (Data)
^FD{NAME}

^FX Field Separator
^FS

^FX Bar Code Field Default (Module Width, Wide bar/Narrow bar, Height)
^BY1,3,30

^FX Field Typeset (Location X, Location Y), Position are relative to alignment
^FT165,148

^FX Code 128 Bar Code (Orientation, Height, Print Interpretation Line, Print Interpretation Line Above Code)
^BCN,,N,N

^FX Field Data (Data)
^FD{SKU}

^FX Field Separator
^FS

^FX Field Typeset (Location X, Location Y), Position are relative to alignment
^FT105,170

^FX Scalable/Bitmapped Font (Name, Orientation, Height, Width)
^A0N,18,18

^FX Field Block (Width, Max Lines, Extra Space Between Lines, Justification, Indent)
^FB230,1,0,C

^FX Field Data (Data)
^FD{SKU}

^FX Field Separator
^FS

^FX Print Quantity (Total, Pause, Replicates, Pause Override)
^PQ{QUANTITY},0,1,Y

^FX Ending tag is always XZ
^XZ
^XZ


1.25x1


^FX Starting tag is always XA
^XA

^FX Print Orientation (Normal or Inverted)
^POI

^FX Field Typeset (Location X, Location Y), Position are relative to alignment
^FT15,50

^FX Scalable/Bitmapped Font (Name, Orientation, Height, Width)
^A0N,45,45

^FX Field Block (Width, Max Lines, Extra Space Between Lines, Justification, Indent)
^FB205,1,0,R

^FX Field Data (Data)
^FD{PRICE}

^FX Field Separator
^FS

^FX Field Typeset (Location X, Location Y), Position are relative to alignment
^FT15,75

^FX Scalable/Bitmapped Font (Name, Orientation, Height, Width)
^A0N,20,20

^FX Field Block (Width, Max Lines, Extra Space Between Lines, Justification, Indent)
^FB165,1,0,R

^FX Field Data (Data)
^FD{CODE}

^FX Field Separator
^FS

^FX Field Typeset (Location X, Location Y), Position are relative to alignment
^FT35,118

^FX Scalable/Bitmapped Font (Name, Orientation, Height, Width)
^A0N,18,18

^FX Field Block (Width, Max Lines, Extra Space Between Lines, Justification, Indent)
^FB230,2,0,C

^FX Field Data (Data)
^FD{NAME}

^FX Field Separator
^FS

^FX Bar Code Field Default (Module Width, Wide bar/Narrow bar, Height)
^BY1,3,30

^FX Field Typeset (Location X, Location Y), Position are relative to alignment
^FT103,148

^FX Code 128 Bar Code (Orientation, Height, Print Interpretation Line, Print Interpretation Line Above Code)
^BCN,,N,N

^FX Field Data (Data)
^FD{SKU}

^FX Field Separator
^FS

^FX Field Typeset (Location X, Location Y), Position are relative to alignment
^FT35,170

^FX Scalable/Bitmapped Font (Name, Orientation, Height, Width)
^A0N,18,18

^FX Field Block (Width, Max Lines, Extra Space Between Lines, Justification, Indent)
^FB230,1,0,C

^FX Field Data (Data)
^FD{SKU}

^FX Field Separator
^FS

^FX Print Quantity (Total, Pause, Replicates, Pause Override)
^PQ{QUANTITY},0,1,Y

^FX Ending tag is always XZ
^XZ

2.25 x 1.25


^XA

^POI

^FT55,60
^A0N,60,60
^FB240,1,0,R
^FD{PRICE}
^FS


^FT55,120
^A0N,20,20
^FB280,2,0,C
^FD{NAME}
^FS

^BY2,3,60
^FT55,200
^BCN,,N,N
^FD{SKU}
^FS

^FT55,235
^A0N,27,27
^FB230,1,0,C
^FD{SKU}
^FS

^XZ
