Creating Zebra template

Creating Zebra template

In this article, we provide you with information on how to create your custom Zebra label.

InfoZebra labels are created using ZPL code. ZPL (Zebra Programming Language) is a specialized programming language used to design and print labels on Zebra-brand printers.

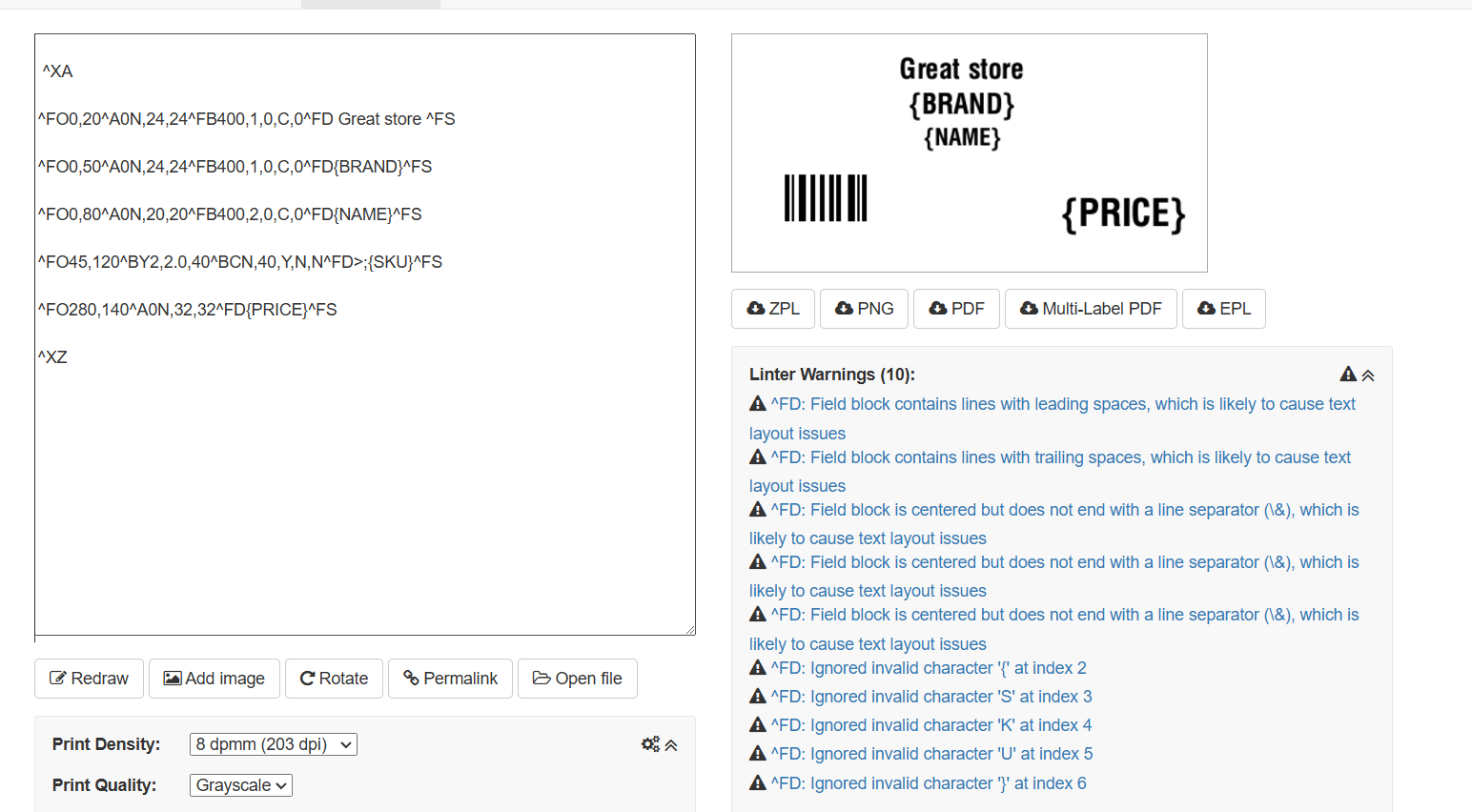

Preview Your Label

 https://labelary.com/viewer.html - You can use Labelary to preview your label in real-time while creating it.

https://labelary.com/zpl.html - Article with explanation of ZPL code.



Supported Parameters

Below are the supported parameters for your Zebra label:

{SKU} - Product SKU

{CODE} - Product Code

{NAME} - Product Name

{PRICE} - Product Price

{BRAND} - Product Brand

Example of a ZPL code for Franpos label printing

Quote

^XA

^FO0,20^A0N,24,24^FB400,1,0,C,0^FD Great store ^FS

^FO0,50^A0N,24,24^FB400,1,0,C,0^FD{BRAND}^FS

^FO0,80^A0N,20,20^FB400,2,0,C,0^FD{NAME}^FS

^FO45,120^BY2,2.0,40^BCN,40,Y,N,N^FD>;{SKU}^FS

^FO280,140^A0N,32,32^FD{PRICE}^FS

^XZ
