Enabling DHCP on the Franpos XP printer

Enabling DHCP on the Franpos XP printer

Connect the Franpos XP Printer to a Windows PC.

  1. Download the required archive. Google drive link
  2. Unzip it to any folder on your computer using 7zip.
  3. Note: The password for the archive is 123.
  4. Open POS Printer Test.exe.

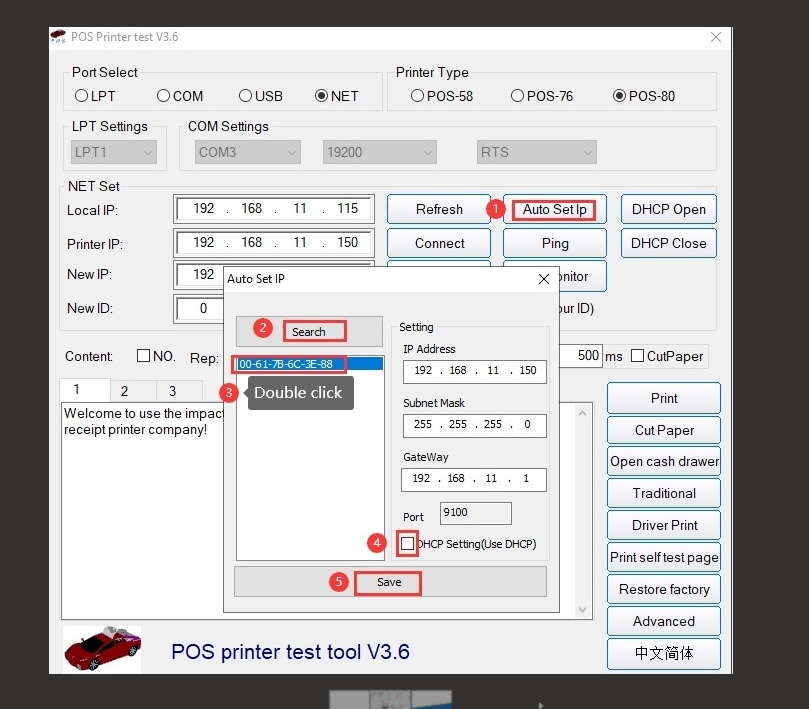

  5. Follow the instructions shown below:
            5.1: Click on Auto-Setup..
            5.2: Click Search to find your printer.
            5.3: Select your printer from the list.
            5.4: Check the box for Enable DHCP.
            5.5: Click Save to apply the settings.
