Franpos Hardware Bundle and Setup

Franpos Hardware Bundle and Setup

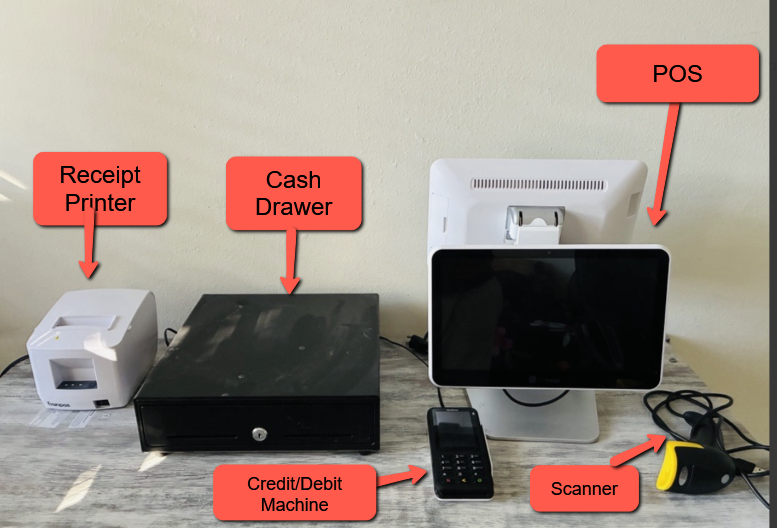

Franpos Hardware Bundle Includes

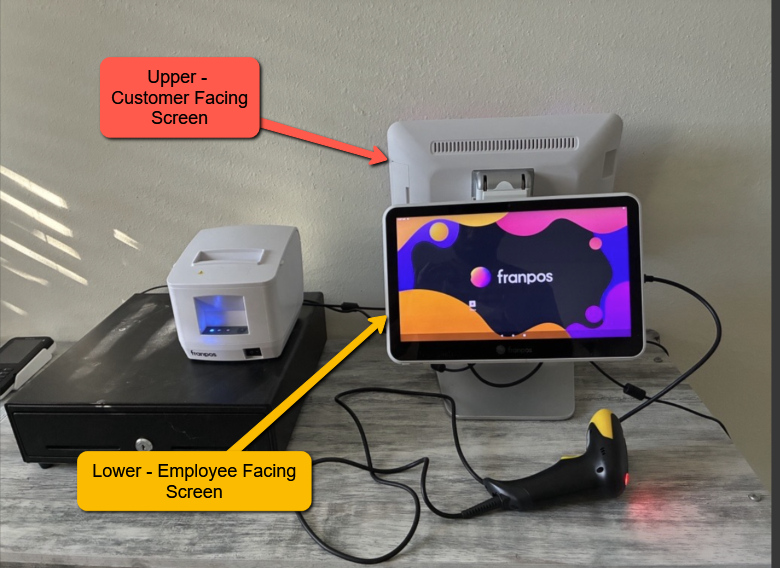

Point of Sale System (Dual Screen)
Bar Code Scanner
Receipt Printer
Credit/Debit Machine
Cash Drawer

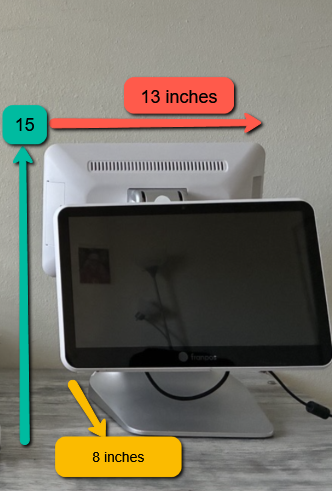

Dimensions

13 inches → the width (left to right across the top)
15 inches → the height (bottom to top)
8 inches → the depth or how far it extends forward from the back/base

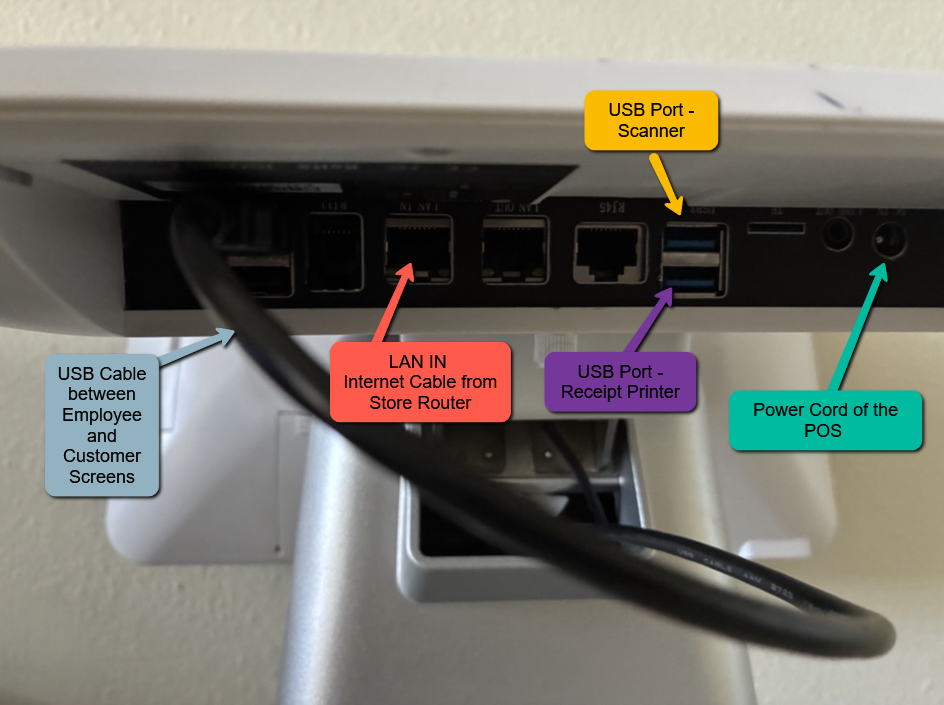

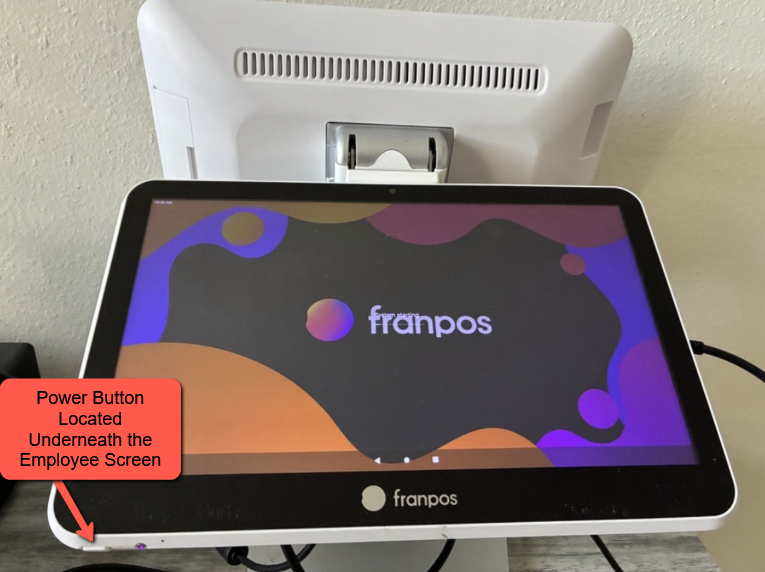

POS Ports located underneath the Employee Screen

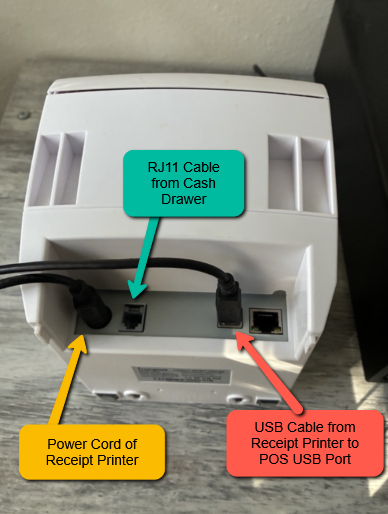

Receipt Printer Ports

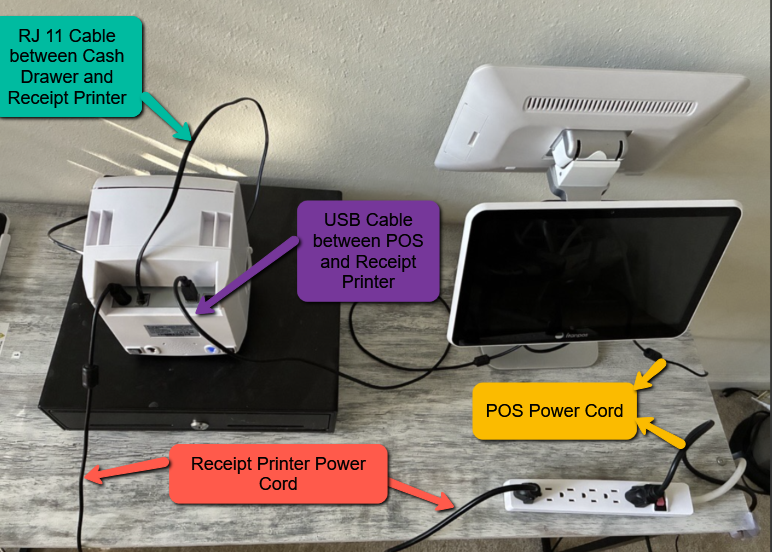

Connections to Power Source

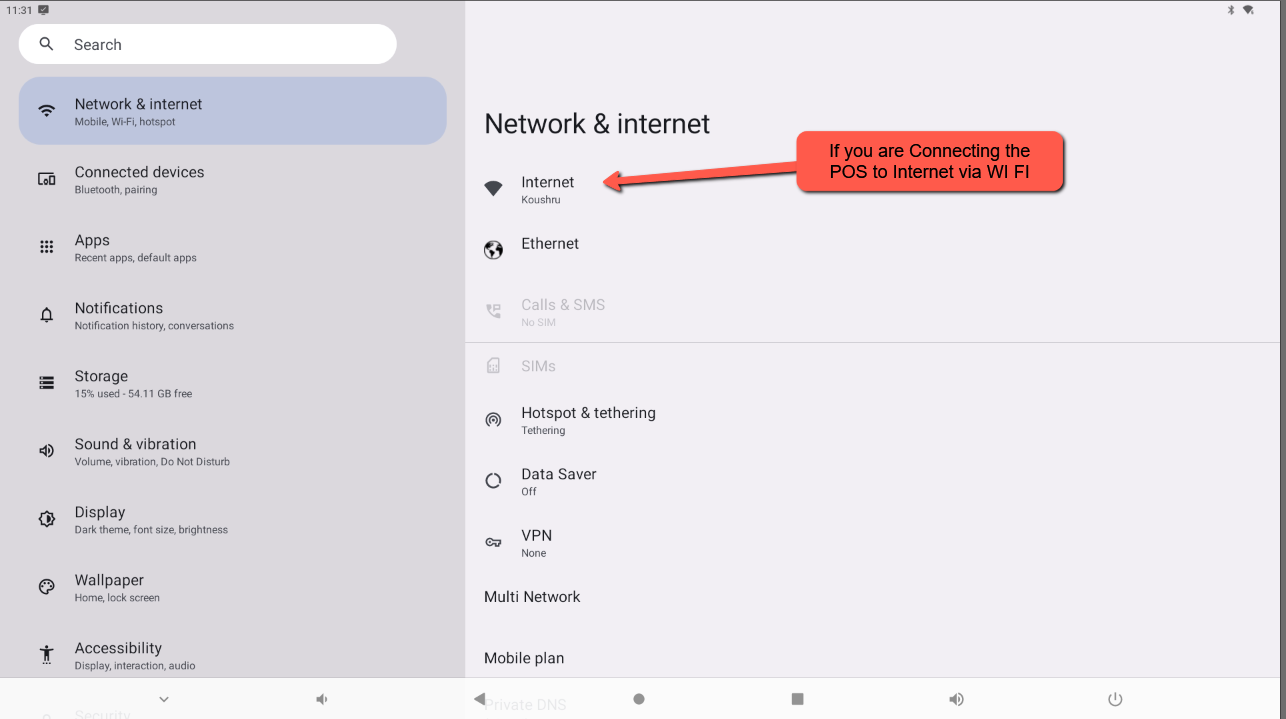

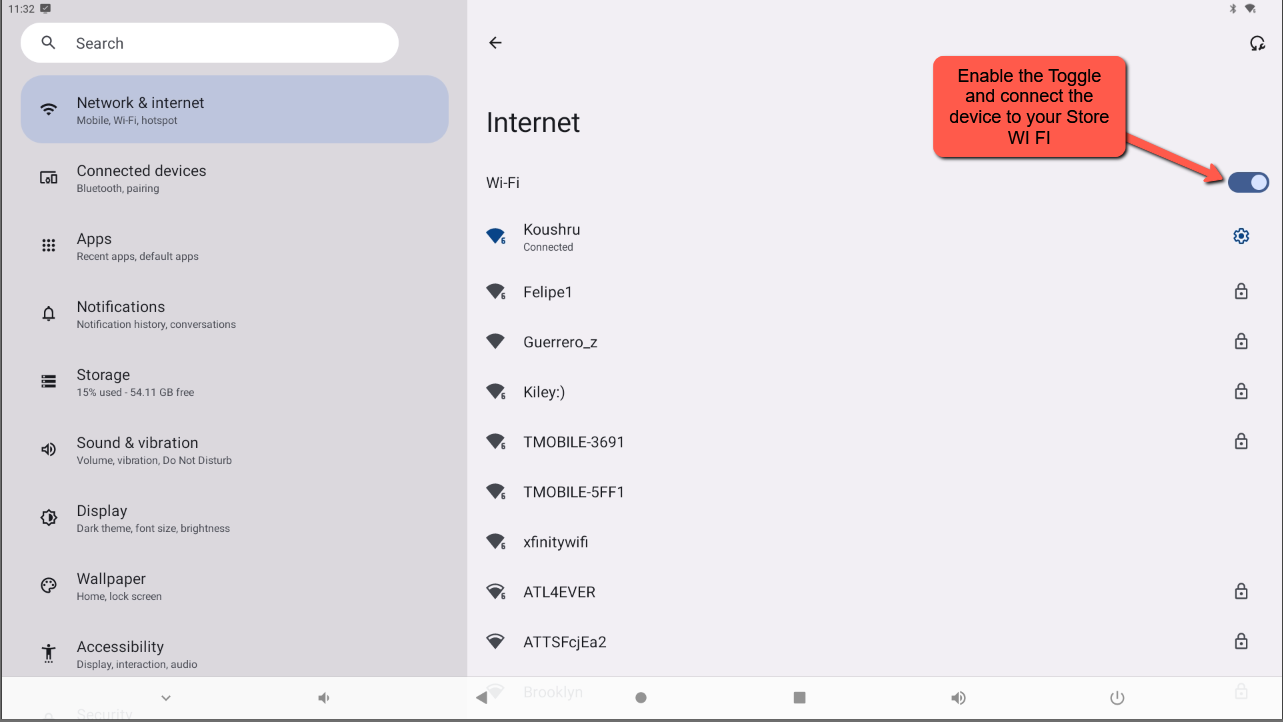

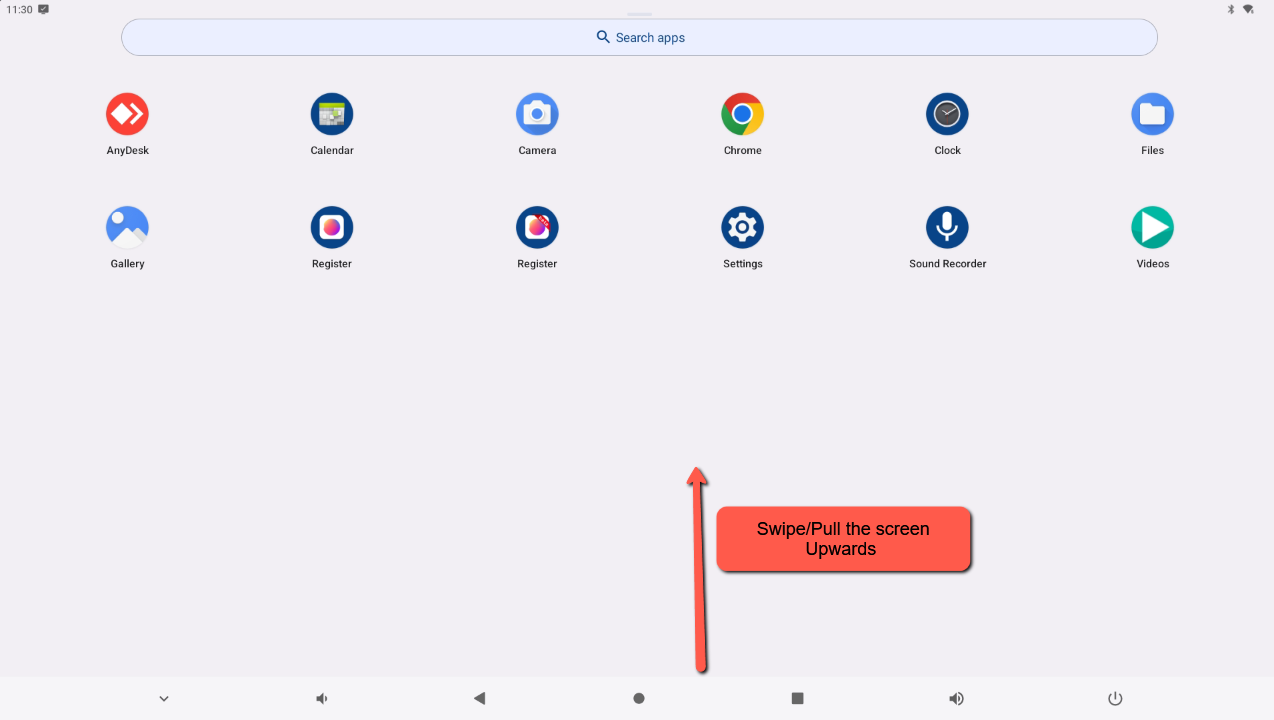

How to Connect the POS to Internet









Warning
Important

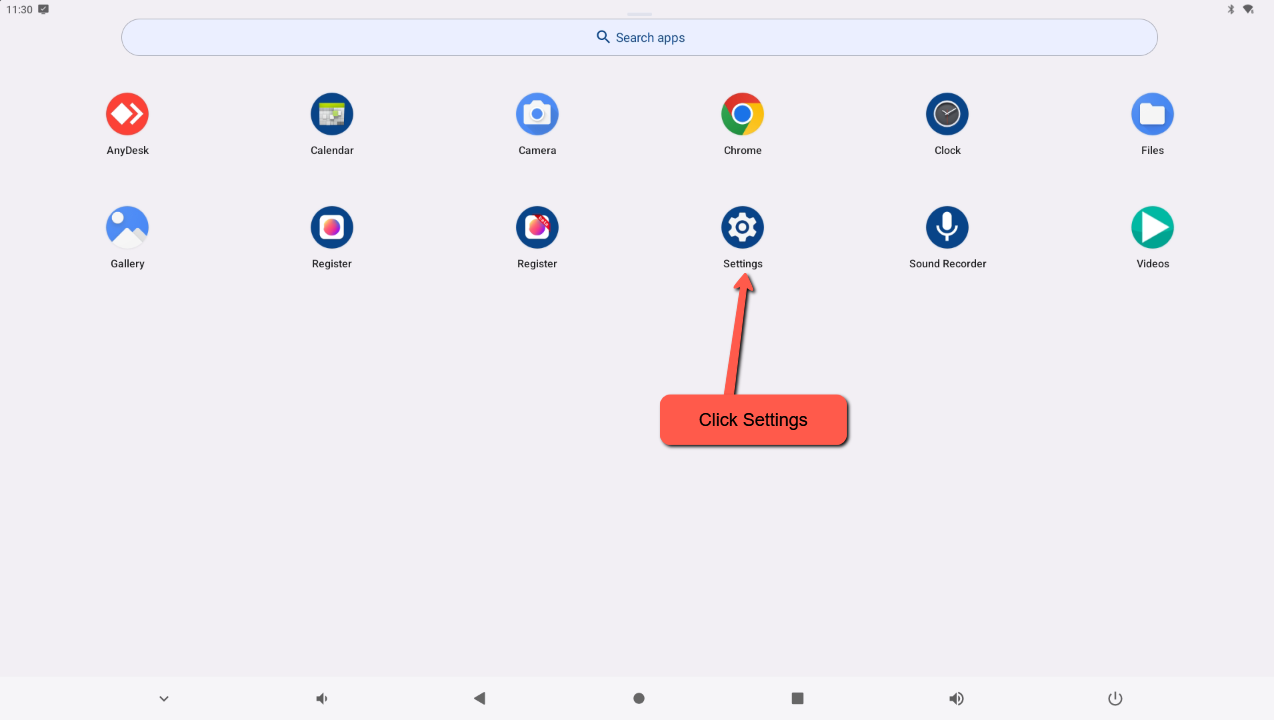

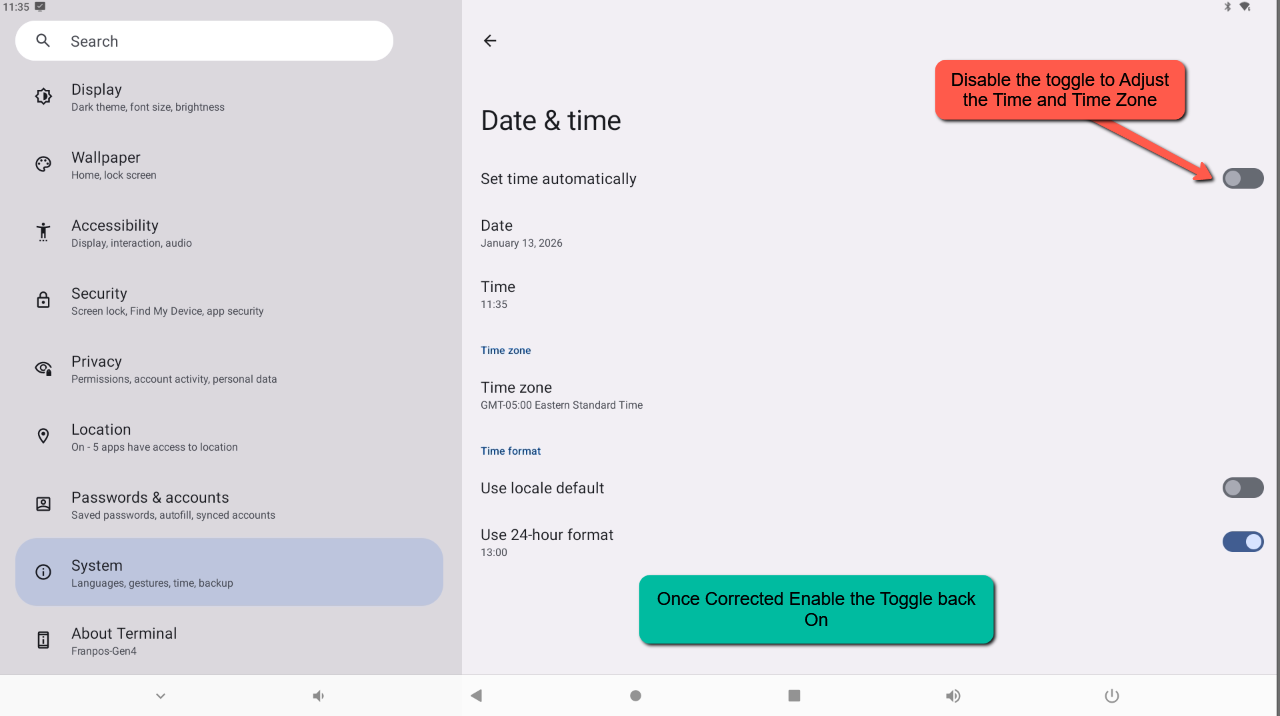

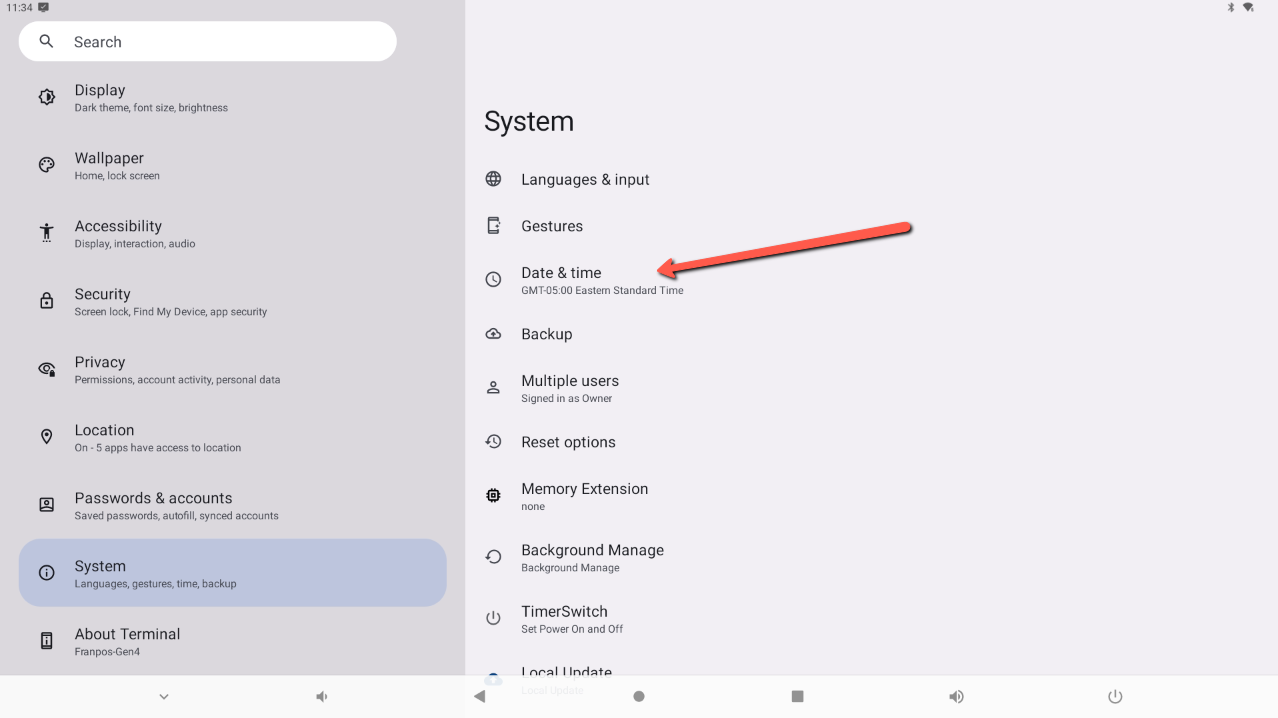

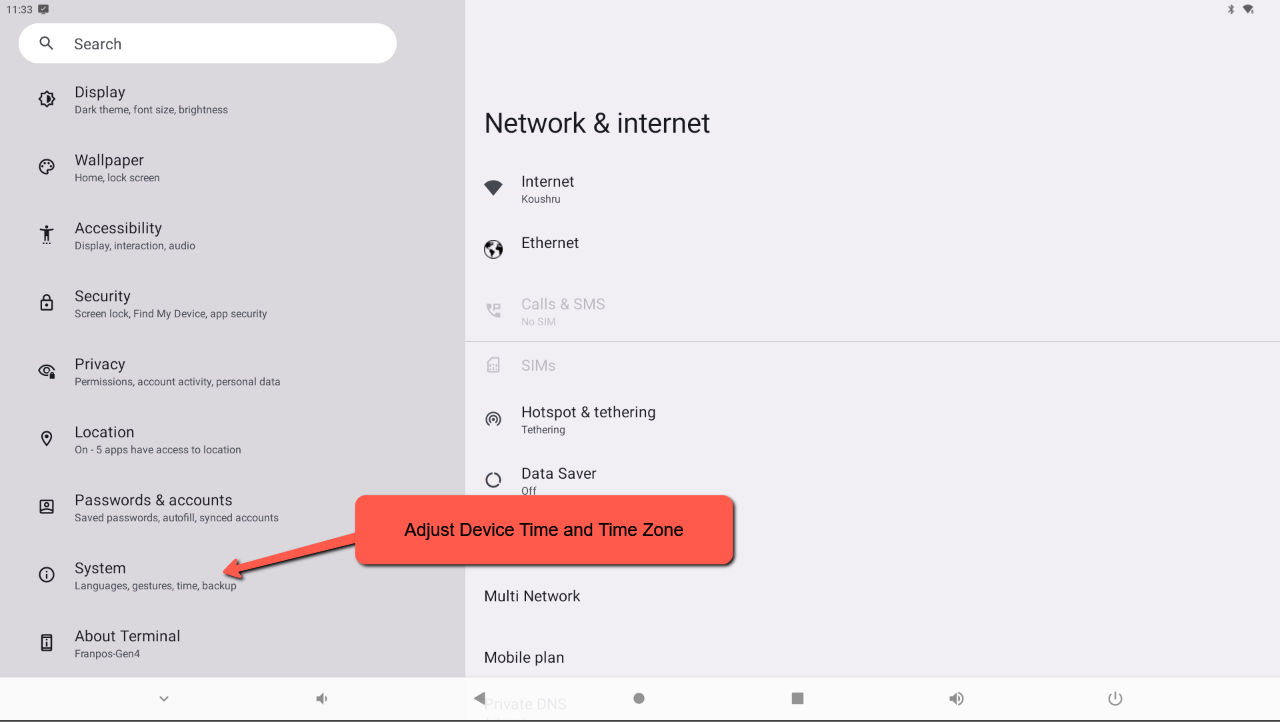

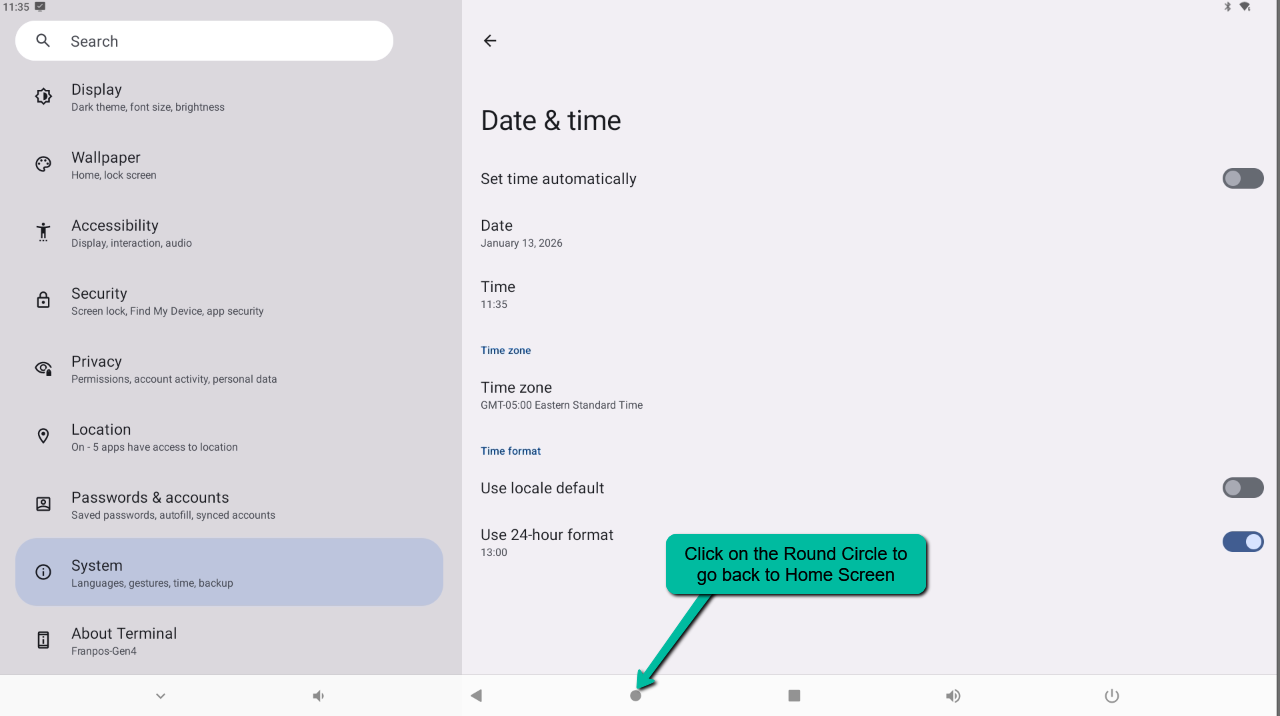

POS Device will come on EST Time zone by default. Please adjust the time zone accordingly.



















Warning
Importnat

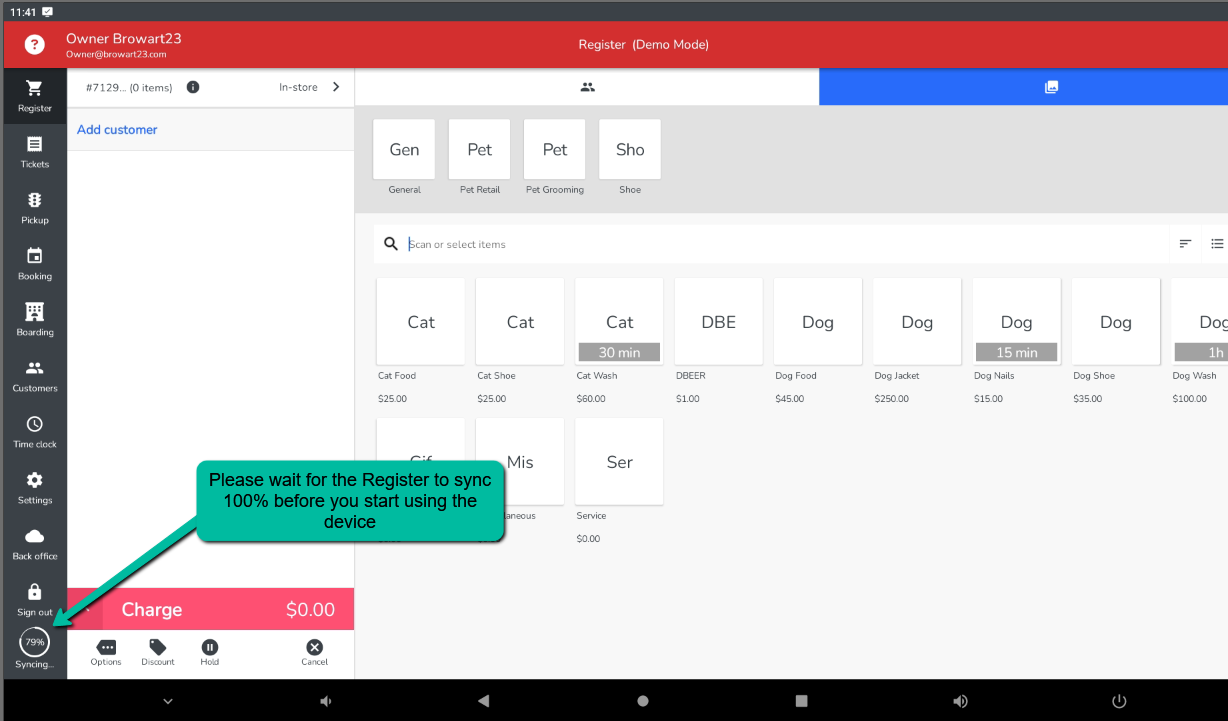

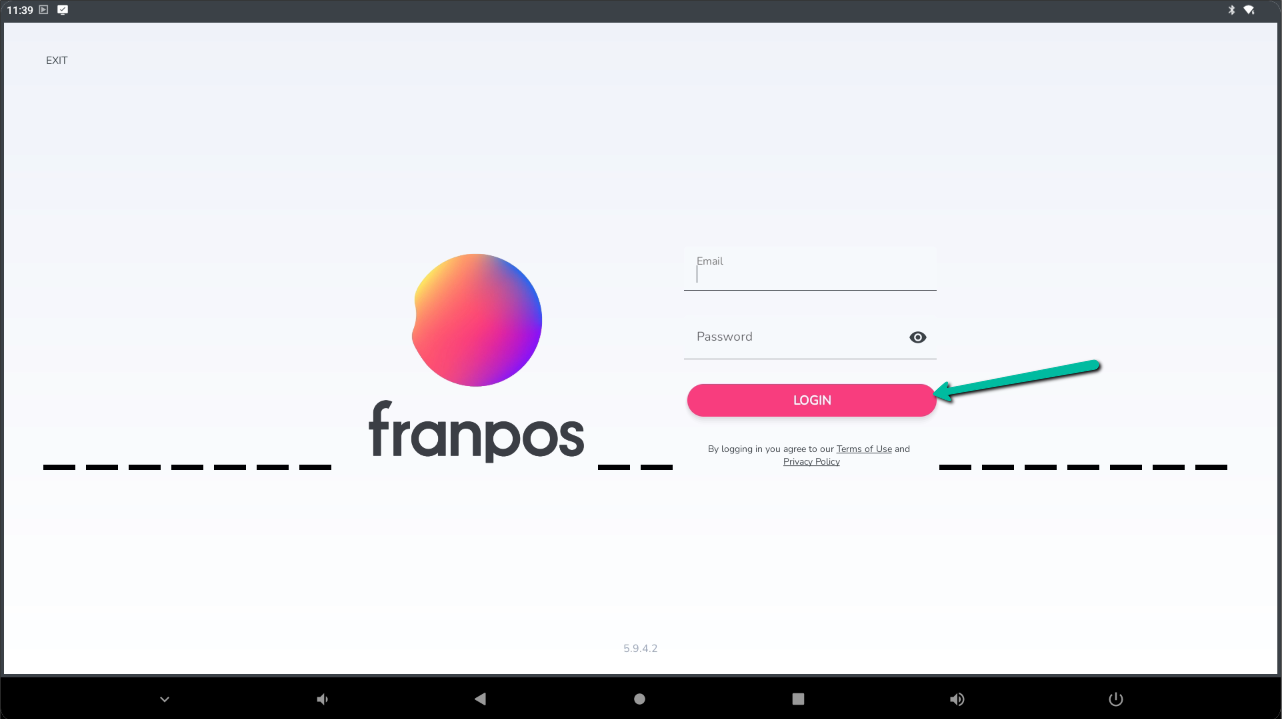

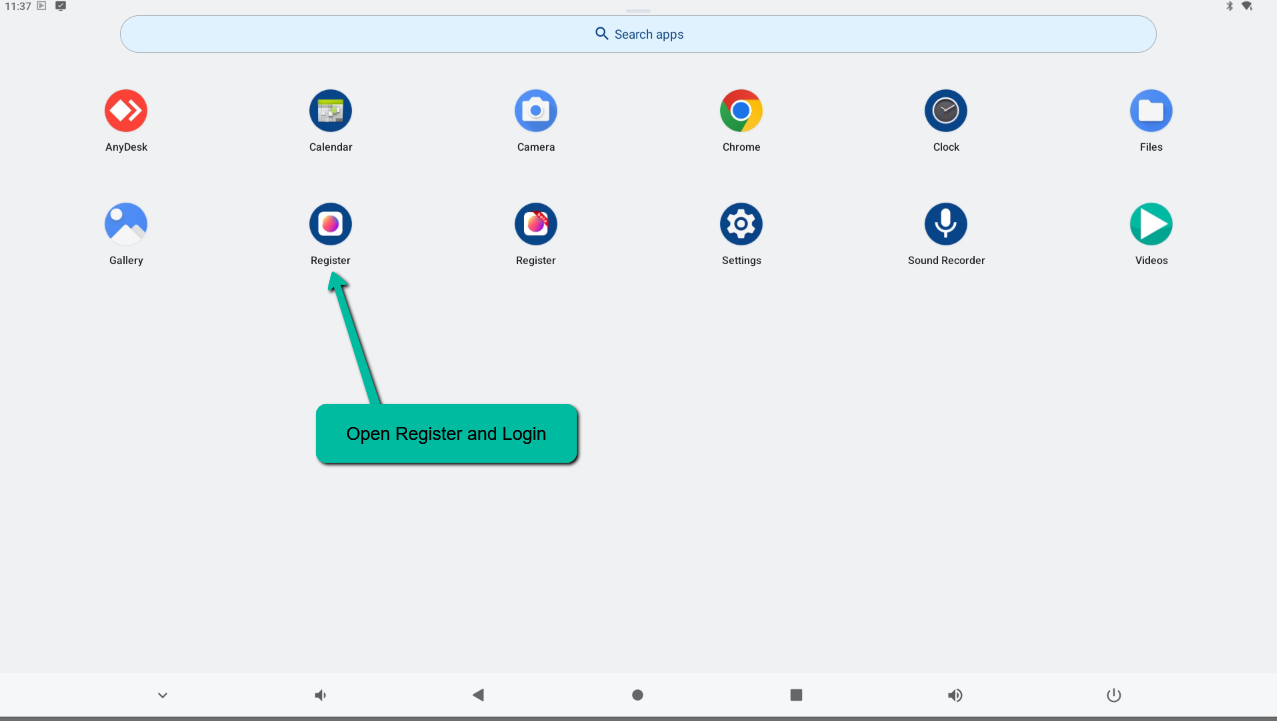

Once everything is connected and Powered on please follow the attached article which explains how to Register the Bar Code Scanner inside Register Application


Register app Install or Update Article


Credit/Debit Machine Setup
